Pneumatic Conveying System

Project Overview

The pneumatic conveying system was designed to transport plastic particles over a distance of up to 160 meters. Utilizing a positive-pressure conveying method, the system can handle a capacity of 1000 kg/h, making it suitable for high-volume production environments.

System Design

1. Conveying Method: The positive-pressure pneumatic conveying system was selected for its ability to efficiently move materials over long distances without the risk of contamination or material degradation.

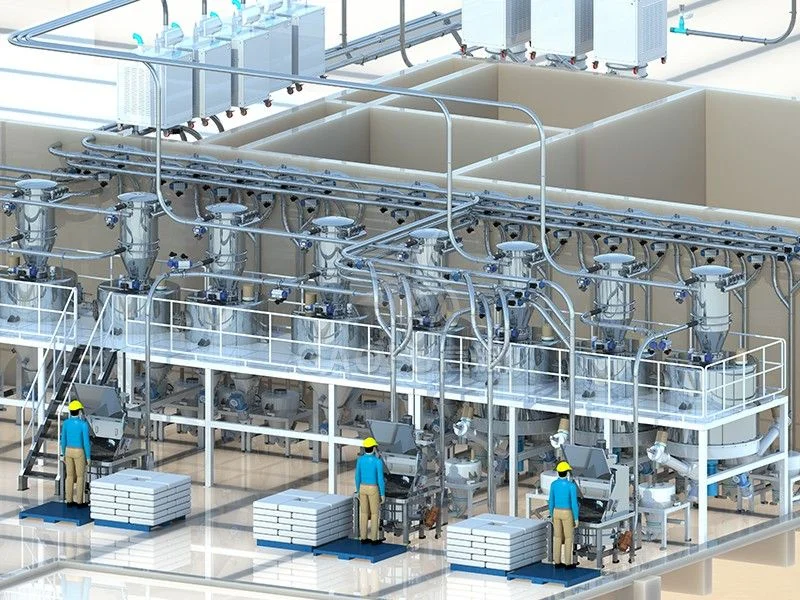

2. Layout and Equipment: The system features a series of interconnected pipes and valves, optimized to facilitate smooth movement of plastic particles. Key components include:

• High-capacity pneumatic pumps to generate the necessary pressure.

• Specialized piping to minimize friction and maintain material integrity.

• A dust collection system to ensure a safe working environment.
